Garage door spring replacement in Calgary commonly costs about $350 to $480 + GST for a standard two-spring residential torsion system. A single spring replacement can cost roughly $185 to $320 + GST, while heavy-duty or high-cycle systems can reach $550 to $680 + GST. The final price depends on the spring type, door weight, spring specifications, and the work required.
Calgary Garage Door Spring Prices at a Glance
| Spring Replacement Type | Typical Calgary Cost | Main Pricing Factors |
|---|---|---|
| Single spring | $185 to $320 + GST | Spring type, door weight and system |
| Two torsion springs | $350 to $480 + GST | Door size, spring specifications and cycle rating |
| Extension springs | $150 to $250 | Spring type and installation requirements |
| High-cycle or heavy-duty springs | $550 to $680 + GST | Cycle rating, wire size and door weight |
| TorqueMaster conversion | Around $580 + GST | Existing system and conversion requirements |
These figures represent published Calgary-area market pricing, not a guaranteed price from Calgary Garage Doors Inc. Your actual quote can vary after the technician checks the garage door and identifies the correct replacement spring.
The spring itself is only one part of the job. The technician may also need to assess the garage door cables, drums, rollers, bearings and other hardware. If another component has failed or suffered damage, that can increase the total repair cost.
If you need the repair rather than just pricing information, see our garage door spring replacement service for more information about the repair process and service.
Detailed Cost Breakdown: Torsion vs. Extension vs. High-Cycle Springs
The spring system affects the cost of garage door spring replacement in Calgary. Standard residential torsion spring replacement commonly costs $350 to $480 + GST for a two-spring system. Extension springs can cost less, while high-cycle and heavy-duty systems can cost considerably more because they use different specifications and cycle ratings.
Residential Torsion Spring Replacement ($350 to $480)

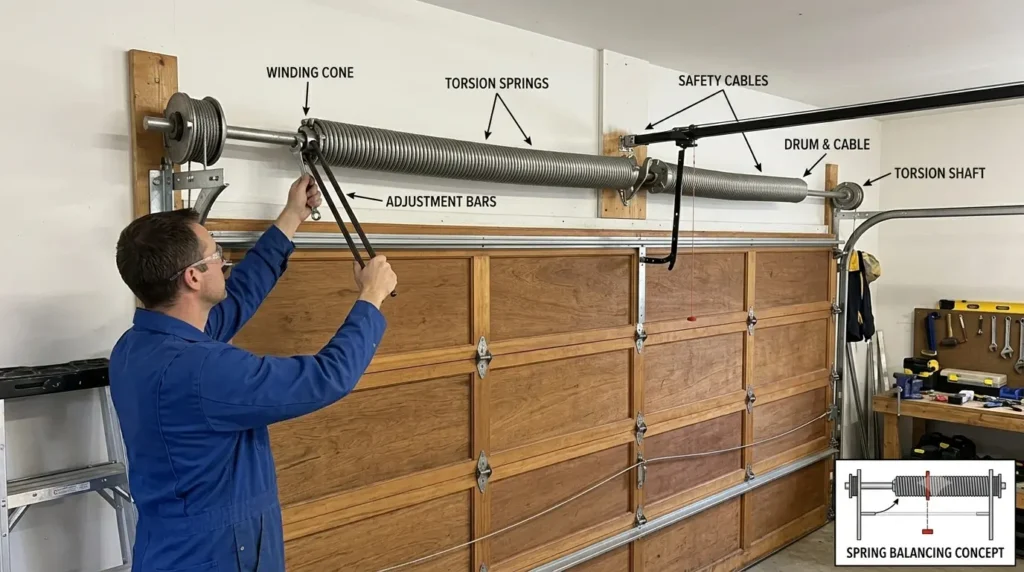

A torsion spring sits above the garage door and helps counterbalance its weight during operation. Many residential doors use one or two torsion springs.
Published Calgary-area prices commonly place a standard two-spring replacement at $350 to $480 + GST. The technician must select springs that match the door’s requirements rather than simply installing a spring based on appearance.
The quote can depend on:
- Wire gauge
- Spring length and inside diameter
- Garage door weight
- Number of springs
- Cycle life rating
- Existing hardware and installation requirements
A correctly matched spring helps the door operate with the right balance. If the door remains difficult to lift after replacement, the technician should check the spring selection, door balance and related hardware.
Extension Spring Replacement & Torsion Conversions ($180 to $350 / $580)
Extension springs run alongside the horizontal garage door tracks. They stretch as the door moves and use that stored energy to assist with lifting.
Published Calgary-area prices for extension spring replacement can range from about $180 to $350, depending on the system and installation requirements.
Some Wayne Dalton garage doors use the TorqueMaster system. This enclosed spring system differs from a conventional torsion setup. If the existing system requires conversion, published Calgary-area pricing can reach around $580 + GST.
A conversion should follow an inspection of the complete door system. The technician may need to assess the cables, drums, shaft and other components before recommending the appropriate repair.
Heavy-Duty & High-Cycle Springs (25,000+ Cycles)
High-cycle springs are designed for more operating cycles than standard springs. One cycle generally means the garage door opens and closes once.
Published Calgary-area prices for heavy-duty or high-cycle spring systems can reach about $550 to $680 + GST, depending on the door weight, spring specifications and cycle rating.
A 25,000-cycle spring can suit a garage door that receives frequent daily use. Homeowners with busy households may consider a higher cycle rating when replacing their springs. The right choice depends on the door and its operating requirements.
Spring material also matters. Oil-tempered steel is one material used in garage door spring manufacturing because it provides the properties needed for repeated loading.
A higher cycle rating does not guarantee a specific number of years. Actual spring life depends on factors such as usage, door balance, installation and the condition of other components.
You can also compare other common repair costs in our Calgary garage door repair cost guide.
Detailed Cost Breakdown: Torsion vs. Extension vs. High-Cycle Springs
The spring system affects the cost of garage door spring replacement in Calgary. Standard residential torsion spring replacement commonly costs $350 to $480 + GST for a two-spring system. Extension springs can cost less, while high-cycle and heavy-duty systems can cost considerably more because they use different specifications and cycle ratings.
Residential Torsion Spring Replacement ($350 to $480)
A torsion spring sits above the garage door and helps counterbalance its weight during operation. Many residential doors use one or two torsion springs.
Published Calgary-area prices commonly place a standard two-spring replacement at $350 to $480 + GST. The technician must select springs that match the door’s requirements rather than simply installing a spring based on appearance.
The quote can depend on:
- Wire gauge
- Spring length and inside diameter
- Garage door weight
- Number of springs
- Cycle life rating
- Existing hardware and installation requirements
A correctly matched spring helps the door operate with the right balance. If the door remains difficult to lift after replacement, the technician should check the spring selection, door balance and related hardware.
Extension Spring Replacement & Torsion Conversions ($180 to $350 / $580)
Extension springs run alongside the horizontal garage door tracks. They stretch as the door moves and use that stored energy to assist with lifting.
Published Calgary-area prices for extension spring replacement can range from about $180 to $350, depending on the system and installation requirements.
Some Wayne Dalton garage doors use the TorqueMaster system. This enclosed spring system differs from a conventional torsion setup. If the existing system requires conversion, published Calgary-area pricing can reach around $580 + GST.
A conversion should follow an inspection of the complete door system. The technician may need to assess the cables, drums, shaft and other components before recommending the appropriate repair.
Heavy-Duty & High-Cycle Springs (25,000+ Cycles)
High-cycle springs are designed for more operating cycles than standard springs. One cycle generally means the garage door opens and closes once.
Published Calgary-area prices for heavy-duty or high-cycle spring systems can reach about $550 to $680 + GST, depending on the door weight, spring specifications and cycle rating.
A 25,000-cycle spring can suit a garage door that receives frequent daily use. Homeowners with busy households may consider a higher cycle rating when replacing their springs. The right choice depends on the door and its operating requirements.
Spring material also matters. Oil-tempered steel is one material used in garage door spring manufacturing because it provides the properties needed for repeated loading.
A higher cycle rating does not guarantee a specific number of years. Actual spring life depends on factors such as usage, door balance, installation and the condition of other components.
You can also compare other common repair costs in our Calgary garage door repair cost guide.
Key Factors That Influence Your Spring Replacement Quote in Calgary
Your garage door’s size, weight, spring system and existing hardware all affect the replacement cost. A larger insulated door may need springs with different specifications than a lighter single-car door. Calgary’s temperature swings and the condition of the door’s cables and hardware can also affect the work required.
Garage Door Size, Insulation, and True Weight
Garage door size alone does not determine the correct spring. The technician needs to consider the actual door weight and the existing spring system.
An insulated garage door can weigh more than a comparable non-insulated door. Multiple layers, windows and hardware can also add weight. The R-value measures a door’s resistance to heat flow, but it does not determine the spring size by itself.
The technician may check:
- Door weight
- Spring length and inside diameter
- Wire gauge
- Number of springs
- Cycle life rating
- Door balance
A properly matched spring should counterbalance the door correctly. If the spring specifications do not match the door, the opener and other components may experience unnecessary strain.
Calgary Climate: Cold Snaps, Chinooks, and Metal Fatigue
Calgary experiences sharp temperature changes throughout the year. Cold snaps can bring freezing conditions, while Chinook weather can cause relatively rapid temperature changes.
Cold temperatures can affect lubricants and increase resistance in moving garage door components. Repeated loading and normal use also contribute to spring wear over time.
Weather alone does not determine when a spring will fail. The cycle rating, door balance, installation and frequency of use also influence spring life.
A proper inspection therefore looks at the complete garage door system instead of assuming that temperature caused the failure.
Additional Hardware Wear: Lift Cables, Bearings, and Drums
A broken spring does not always mean the spring is the only component that needs attention. During a spring replacement, the technician should also inspect the lift cables, drums, bearings and other related hardware.
A worn or damaged lift cable can affect door movement and balance. Damaged drums can interfere with proper cable operation. Worn bearings can add friction and noise.
If these components also require repair or replacement, they can increase the final cost. An itemized quote should clearly identify any additional work before the repair begins.
If you are dealing with a damaged lift cable, see our garage door cable repair service for more information.
How to Spot “Bait-and-Switch” Pricing: What a Legitimate Quote Includes
A legitimate garage door spring replacement quote should clearly explain what you will pay for and what the price includes. A very low phone estimate may cover only a basic service or starting price. Before booking, confirm the spring, labour, GST, diagnostic charges, travel fees and warranty.
The $120 Phone Quote Trap Explained
A $120 phone quote does not necessarily represent the complete cost of spring replacement. The price may exclude labour, taxes, service charges or additional parts required after an inspection.
For example, the technician may find that your garage door needs a specific torsion spring based on its weight, wire gauge or cycle rating. Worn cables, drums or bearings can also affect the final repair.
Before accepting a low advertised price, ask:
- Does the price include the replacement spring?
- Does it include installation labour?
- Is GST included?
- Are there diagnostic or service charges?
- Does the company charge a travel fee?
- Does the price cover one spring or the complete spring system?
- What parts warranty applies?
A company should give you enough information to understand the actual repair cost before you authorize the work.
The Calgary Garage Doors Inc. Quote Verification Checklist
When comparing a Calgary Garage Doors Inc. quote with another local garage door company, check that each quote covers the same work.
1. Confirm the spring specifications
Ask which spring the technician recommends and whether it matches the garage door’s weight and existing system.
2. Confirm the complete price
Check whether the quoted amount includes parts, labour and GST.
3. Ask about additional fees
Confirm whether diagnostic, service or travel charges apply.
4. Check the warranty
Ask what warranty covers the replacement spring and any installation work.
5. Request an itemized quote
The quote should identify the main parts and services included in the repair.
6. Clarify additional repairs
If the technician finds worn lift cables, drums, bearings or other hardware, ask what needs replacement and how much the additional work will cost before approving it.
The best comparison is not simply the lowest number. Compare complete quotes for the same spring replacement work. This helps you identify the actual value of each offer and reduces the risk of unexpected charges.
Emergency & Same-Day Spring Replacement in Calgary: What Does It Cost?
Emergency garage door spring replacement can cost more than a routine repair when you need service outside normal hours. The total price depends on the spring system, door weight, replacement parts and any after-hours, weekend or emergency service charges the company applies.
If a broken spring leaves your car trapped in the garage, do not force the door open with the opener. A broken spring can leave the door extremely heavy and difficult to lift safely.
What Can Affect an Emergency Spring Replacement Quote?
The repair itself may cost the same as a standard spring replacement, but some companies add an emergency or after-hours charge.
Before booking an urgent repair, ask:
- Is this the regular spring replacement price?
- Does the company charge an emergency service fee?
- Does a weekend or after-hours surcharge apply?
- Does the quote include labour and GST?
- Does the price cover one spring or the complete spring system?
- Will the technician inspect the cables and other hardware?
These questions help you understand the actual cost before the technician starts work.
When Same-Day Spring Replacement Makes Sense
A broken spring can prevent a garage door from opening normally. This can become a practical problem when you need to get your vehicle out, secure your home or restore access to the garage.
Same-day service can make sense when the door remains unusable and you cannot safely wait for a regular appointment. However, urgency should not prevent you from confirming the price and scope of work.
If you need immediate assistance, call Calgary Garage Doors Inc. at 403-415-4111 or learn more about our emergency garage door repair service. Ask for the current spring replacement quote and available service time.
For safety, avoid attempting a spring replacement yourself. Garage door springs store significant mechanical energy and require the correct tools and installation procedure.
Get an Upfront, Guaranteed Spring Replacement Quote in Calgary
Need to replace a broken garage door spring? Get a clear quote before approving the repair. The final cost depends on your spring system, door weight, spring specifications and any additional hardware that needs attention.
Call Calgary Garage Doors Inc. at 403-415-4111 to discuss your repair and request current pricing.
If you need more information about the repair itself, learn about our garage door spring replacement service in Calgary .
We serve homeowners across Calgary’s NW, NE, SW and SE communities. When you call, describe the problem and any visible damage so the technician can better understand your situation.
